Series Wall Mount

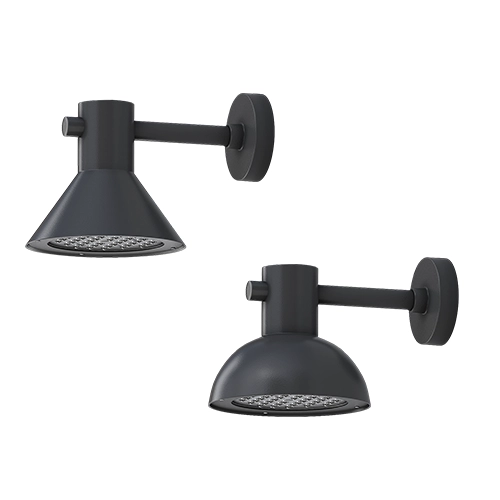

The IKON Wall Mount (IK-WM) by U.S. Architectural Lighting brings the clean, modern IKON aesthetic directly to the building façade, creating a cohesive look across the entire site. Featuring U.S. Architectural’s PLED™ optical system, the lens-free design delivers precise, comfortable illumination with field-rotatable and replaceable optical panels, along with a Dark Sky friendly U0 uplight package.

Built from heavy-wall aluminum with cast A356 mounting components and stainless steel hardware, the IK-WM is engineered for long-term durability and dependable performance. The integrated wall mounting bracket and cover fit a standard recessed 4″ J-Box for a clean installation, while multiple arm lengths and emergency battery backup options provide added flexibility for a wide range of applications.

  • BABA compliant.
  • UL listed for wet location.
  • Optics are Dark Sky compliant with a U0 BUG rating for specific configurations.



Category: Tags: , , , , Brand:
Architectural & Commercial Lighting | U.S. Outdoor Lighting

Need help?

+1 (661) 233-2000

Architectural & Commercial Lighting | U.S. Outdoor Lighting

Email us

info@usaltg.com

Architectural & Commercial Lighting | U.S. Outdoor Lighting

Office hours

7AM - 5PM

IK-WM – IKON Wall Mount DXF File
IK-WM – IKON Wall Mount Spec Sheet
IK-WM – IKON Wall Mount IES File
IK-WM – IKON Wall Mount Revit
Models

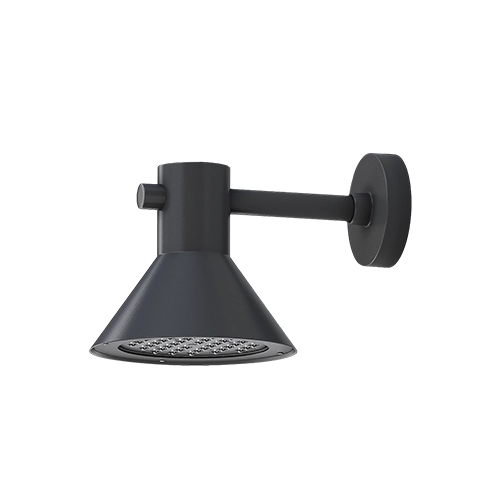

  • IK5A-WM Angled Skirt

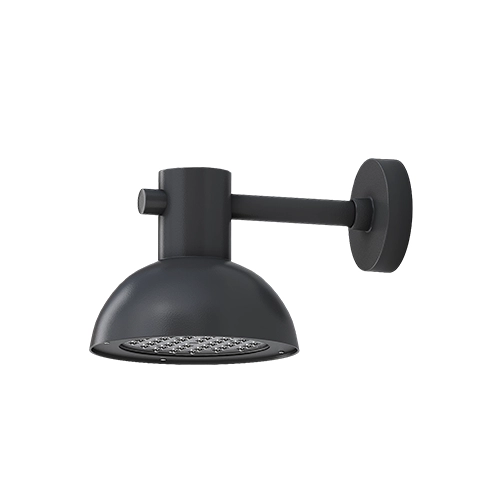

  • IK5D-WM Domed Skirt
  • IK3A-WM Angled Skirt
  • IK3D-WM Domed Skirt
PLED OpticsNarrow Throw Optics
  • PLED-II-FR - Type II Front Row
  • PLED-IV-CL - Type IV CL
  • PLED-VSQ-N - Type V Square Narrow
  Medium Throw Optics
  • PLED-II - Type II
  • PLED-III-M - Type III Med.
  • PLED-IV - Type IV
  Wide Throw Optics
  • PLED-III-W - Type III Wide
  • PLED-IV-FT - Type IV Forward Throw
  • PLED-VSQ-W - Type V Square Wide
PLED Drive Current
  • 175mA
  • 350mA
  • 525mA
  • 700mA
  • 875mA
Color Temp - CCT
  • 27K (2700K)
  • 30K (3000K)
  • 40K (4000K)
  • 50K (5000K)
Amber
  • TRA - True Amber
Voltage
  • UNV (120V-277)
  • 347V
  • 480V
