| GRSC495 – GradeScape 495 Spec Sheet |

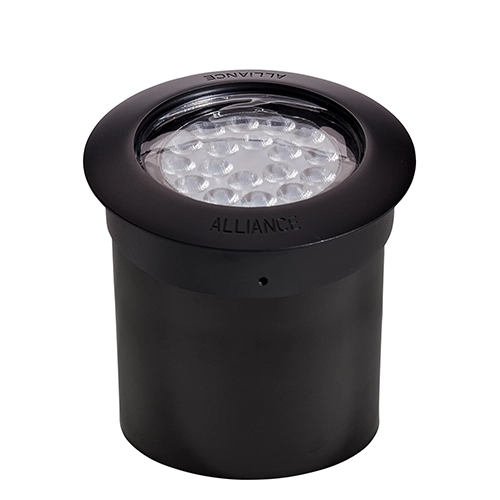

GRSC495
GradeScape 495 LED
High lumen output, integrated-LED well light achieves new levels of lighting performance, matching a line-voltage fixture in low voltage. Get the impressive impact you need to light tall trees, flagpoles, and multi-story structures.
Specifications
Lead Wire Length: Dual brown 16AWG wire leads (option to daisy chain), first 25’, second 18”.

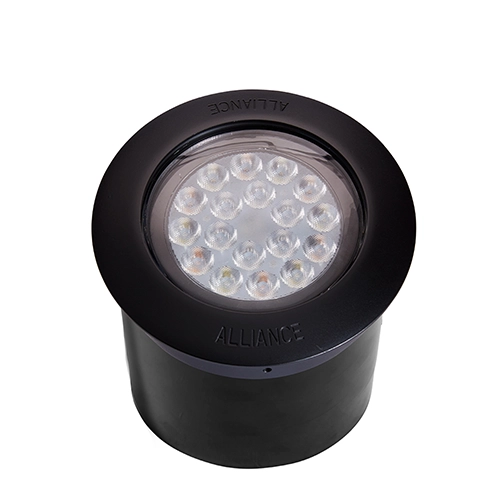

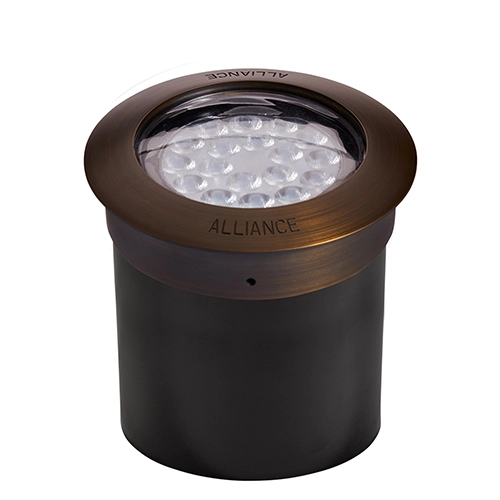

Lid: Cast brass with aged brass finish. Clear convex lens.
Housing: ABS plastic can, stainless steel lamp retainer ring.

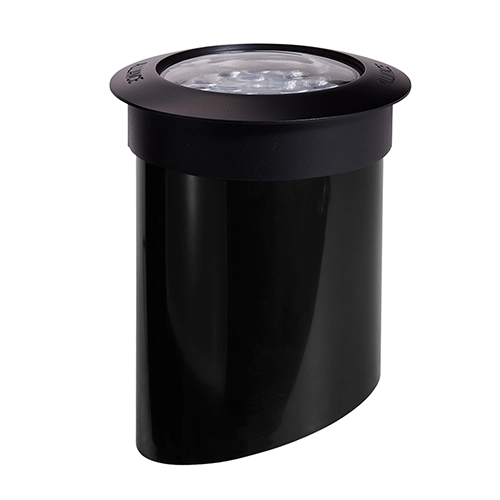

Aiming: Can includes flat end and angled end. Lamp assembly can be fitted to either to allow vertical/flat mounting or angled mounting.
Installation: Install in tree wells, tree rings, planting beds, hardscape areas. Avoid installing in areas where pedestrians or vehicles will directly contact fixture.
