TRX600
Transformer 600
The heart of a low-voltage outdoor lighting system is the transformer. Our rugged professional-grade multi-tap transformer sets the standard for ease of installation and adaptability to standard and app-based controls.
Key Features
- Fully-potted, insulated, single-core transformer
- Easy on/off, secondary breaker switches on each common tap
- Two common lug terminals
- Amp loop to check the primary amperage on the transformer
- Accepts plug-in-timers, has direct photocell connection

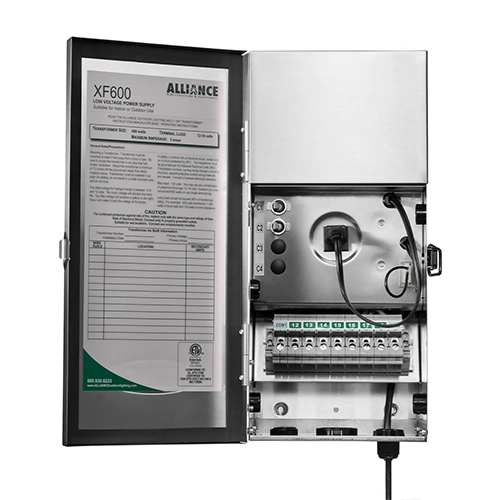

- Angled terminal strip for easy wire connections, eliminates blind spots

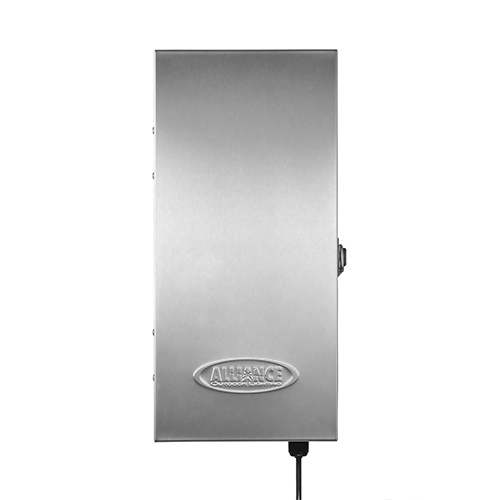

- Heavy-duty stainless-steel cabinet with integrated mounting bar, lockable

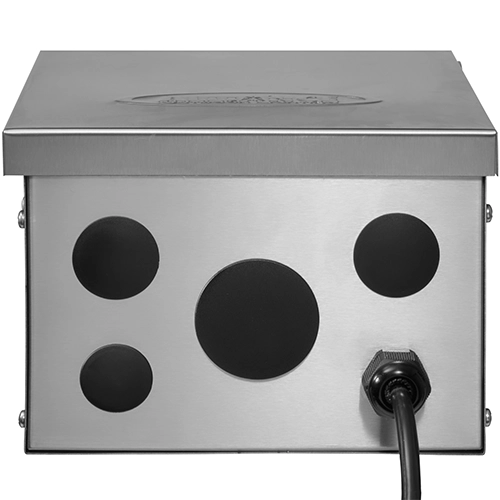

- Removable bottom panel, 5 knockouts for wire connections
- Integrated short circuit and overload protection
- Includes 5’ grounded heavy-gauge power cord
- ETL tested, in conformance to ANSI/UL 1838
Electrical Specifications
600 watts with 6 taps: 12, 13, 14, 15, 16, 17, 18 volts, Maximum total amps: 6A. Use any combination of terminal lugs but do not exceed transformer’s rated wattage on any lug.
