| UPSC200 – UpScape 200 Spec Sheet |
UPSC200
UpScape 200 Bluetooth

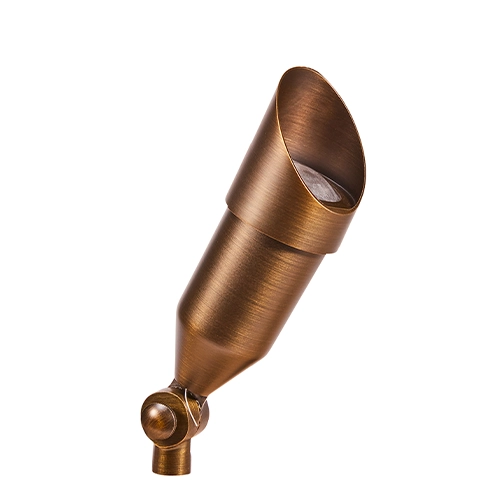

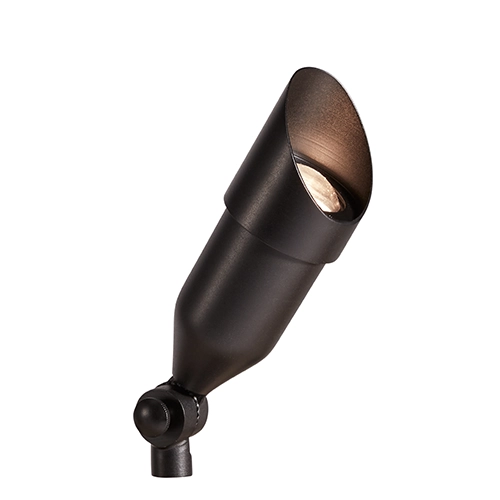

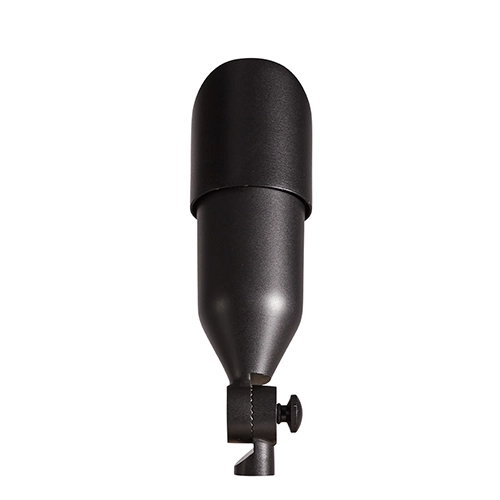

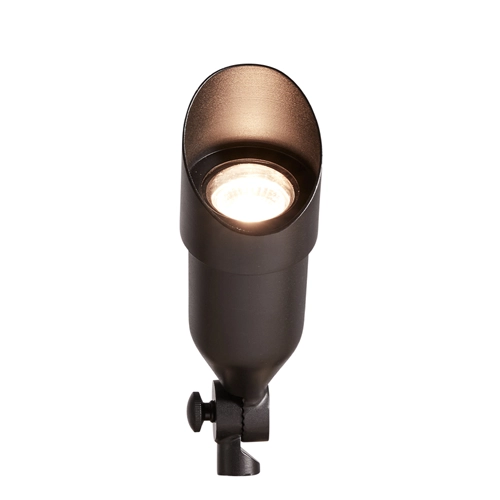

Workhorse, professional-grade accent/up light that uses an MR16 lamp. Includes adjustable shroud and convex glass lens. Ideal for up lighting medium to large trees, columns, and walls. Not intended to be used as a downlight or installed into turf areas with mower or foot traffic.
Mounting / Installation
Wire Lead: Dual 16AWG wire leads (option to daisy chain), first 25’, second 18”.
Mounting: Slotted 8” ground stake (standard)
Material
Housing: Solid cast brass.
Knuckle: Solid cast brass, knob for angle adjustment.
Socket: Spring-loaded ceramic bi-pin MR16, with dual contacts and lamp clips.
Shroud & Lens: Solid cast brass, with dual o-ring seal, with convex tempered, shock-resistant glass lens.
Optional Lenses: Frosted lens, hex louver.
Light Source Options
Choose factory-installed MR16 lamp. Also available without lamp.
